工作原理:

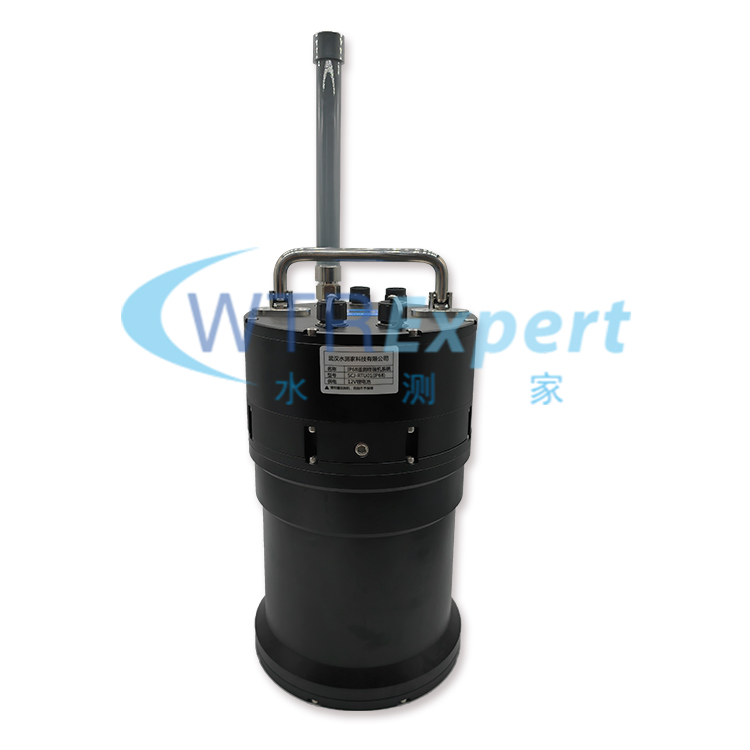

SCJ-RTU01 (IP68) telemetry terminal system is an integrated 4G DTU, lithium battery and low-power IoT data acquisition terminal; built-in 12v 45AH lithium battery, protection level reaches IP68, equipped with OLED display, supports flow, water level, water quality, meteorological data acquisition and transmission, built-in large-capacity SD card, can meet 3 years of data storage needs, and supports remote configuration upgrade function, reducing the difficulty of customer installation and use
主要特點:
integrated 4G DTU, communication is possible without external DTU;
protection level reaches IP68, which can work underground for a long time;
in lithium battery, integrated design, easy to install;
Low standby power consumption and optimized acquisition and transmission algorithms greatly increase the battery working time;
with OLED display screen, convenient for on-site debugging and viewing data;
support for 512MB SD card storage (one piece of data per minute can be stored for 3 years);
USB interface, convenient for connecting to computer;
battery is replaceable for easy maintenance;
多個485和RS232介面;
2路4-20mA輸出及2路4-20mA類比量採集介面;
2-way pulse/switch signal acquisition;
本地/遠端配置升級和歷史資料補發功能;
待機功耗低;
4個中心站同時發送資料(4個中心站同時發送資料);
4個中心站可選擇不同的通訊協定與4個中心站進行通訊;
rapid customization of communication protocols and sensor acquisition protocols;
be directly matched with the company's various water quality, flow rate, and water level meters for use underground;
主要技術參數:
電源範圍 | DC 12V lithium battery |
Charging voltage | DC12.6V lithium battery dedicated fast charging charger |
工作電流 | <5.5 mA @ DC12V 25 ℃ ① |
待機電流 | <0.6mA DC12V 25 ℃ ① |
工作溫度 | -30 ℃-70℃ |
儲存溫度 | -35 ℃-75℃ |
RF Conducted Susceptibility | LTE FDD B1/B3/B5/B8/B34/B38/B39/B40/B41 <-99dBm ② |
RF output power | LTE FDD B1/B3/B5/B8 -44dBm ~ 23dBm ( ±2dBm) LTE TDD B34/38/B39/B40/B41 -42dBm ~ 23dBm ( ±2dBm) ② |
最大輸出電流 | <2A @DC12V ( the total current output to the sensor cannot exceed 2A) |
辛card type | MicroSIM ( all network 4G SIM card) |
展示 | 0.96 inch OLED 128*64 resolution |
天線介面 | N female connector |
Antenna parameters | Waterproof 5dbi Hexagonal N Male |

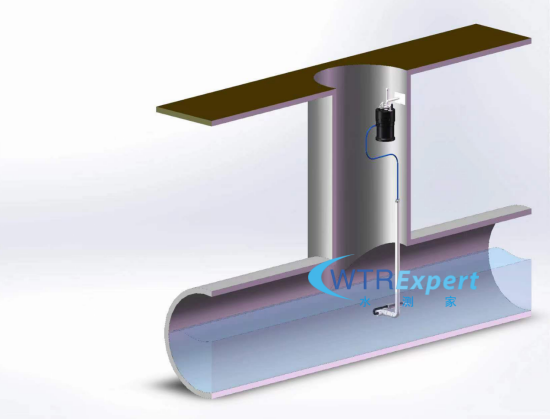

安裝方法:

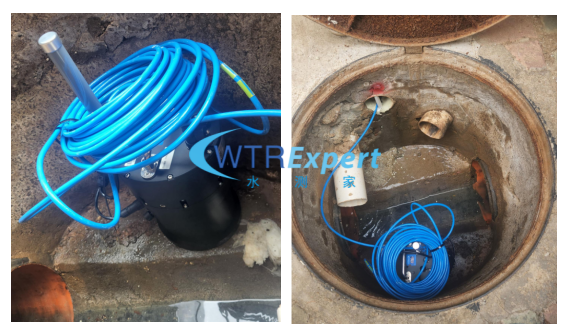

應用實例:
