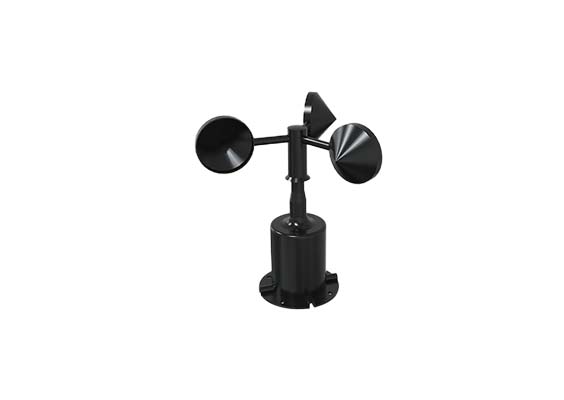

Key Features:
Measuring range: 0-70m/s ,
Resolution 0.1m/s Anti-electromagnetic interference processing
The bottom outlet is adopted to completely eliminate the aging problem of the rubber pad of the aviation plug, and it is still waterproof after long-term use.
Adopt high-performance imported bearings, small rotation resistance and accurate measurement
Polycarbonate shell, strong mechanical strength, high hardness, corrosion resistance,
No rust, can be used for long-term outdoor equipment. The structure and weight are carefully designed and distributed, with small moment of inertia and sensitive response.
Standard ModBus-RTU communication protocol, easy access
Product parameters:
DC power supply: 10~30V DC
Power consumption: ≤0.3W
Transmitter circuit operating temperature: -20℃~+60℃, 0%RH~80%RH
Communication interface: 485 communication (modbus) protocol
Baud rate: 2400, 4800 (default),
Default ModBus communication address: 1
Support function code: 03/04
Parameter setting: Use the provided configuration software to configure through the 485 interface
Resolution: 0.1m/s
Accuracy: ± (0.2 + 0.03V) m/s V indicates wind speed
Measuring range: 0~70m/s
Dynamic response time: ≤1s
On-site case:
