Key Features:
Range: 8 directions
Anti-electromagnetic interference processing
Adopt high-performance imported bearings, small rotation resistance and accurate measurement
Polycarbonate shell, strong mechanical strength, high hardness, corrosion resistance, no rust, can be used outdoors for a long time
The structure and weight of the equipment are carefully designed and distributed, with small moment of inertia and sensitive response.
Standard ModBus-RTU communication protocol, easy access
Product parameters:
DC power supply: 10~30V DC
Power consumption: 0.15W
Transmitter circuit operating temperature: -20℃~+60℃, 0%RH~80%RH
Communication interface: 485 communication (modbus) protocol
Baud rate: 2400, 4800 (default), 9600
Data bit length: 8 bits
Parity check mode: None
Stop bit length: 1 bit
Default ModBus communication address: 1
Support function code: 03
Parameter setting: Use the provided configuration software to configure through the 485 interface
Measuring range: 8 indication directions
Dynamic response speed: ≤0.5s

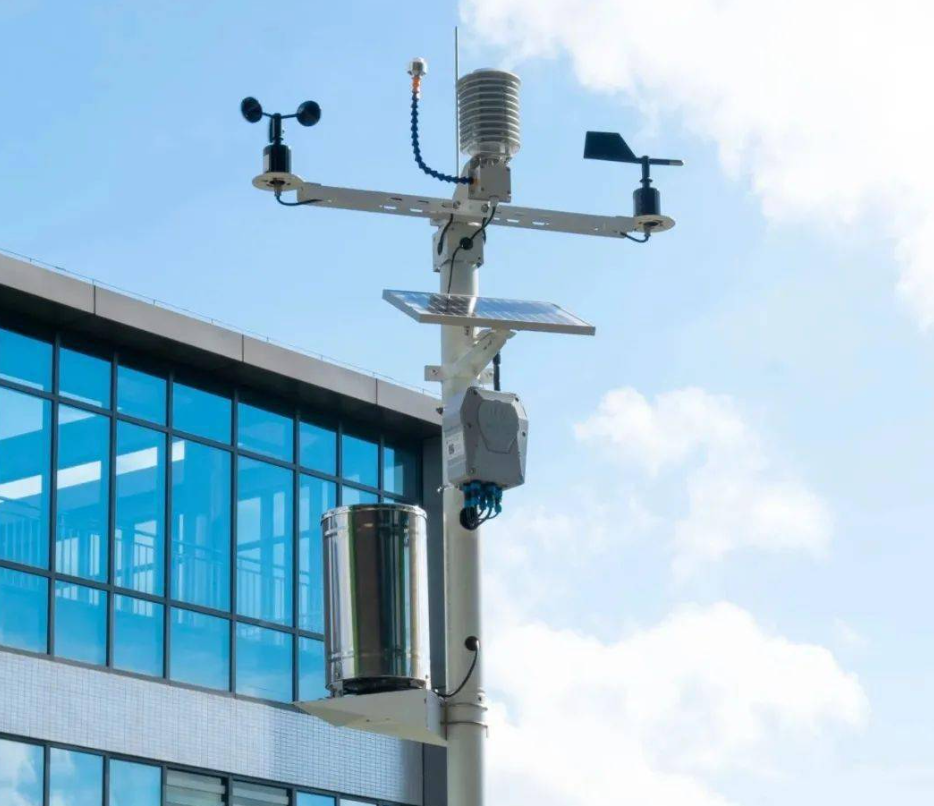

On-site case:
