The SCJ-RTU01 integrates STALKER SVR radar velocity meter

According to customer needs, the SCJ-RTU01 is integrated with the imported STALKER Surface Velocity Readar (SVR) Speed Sensor radar velocity meter, and the SVR radar velocity meter is connected with the SCJ-RTU01 telemetry terminal using RS485 interface.

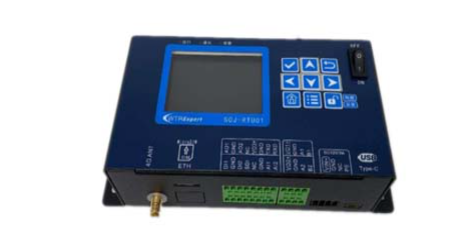

SCJ-RTU01 Telemetry Terminal

The imported STALKER SVR radar velocity meter, using RS485 communication, uses 34.7GHZ radar frequency, and uses a spherical lens antenna, which is larger than the domestic 24GThe antenna size of the radar velocity meter is smaller, but the SVR working current is very large, close to 12V 400ma, and the power consumption of the radar velocity meter of the water surveyor is less than 40ma.

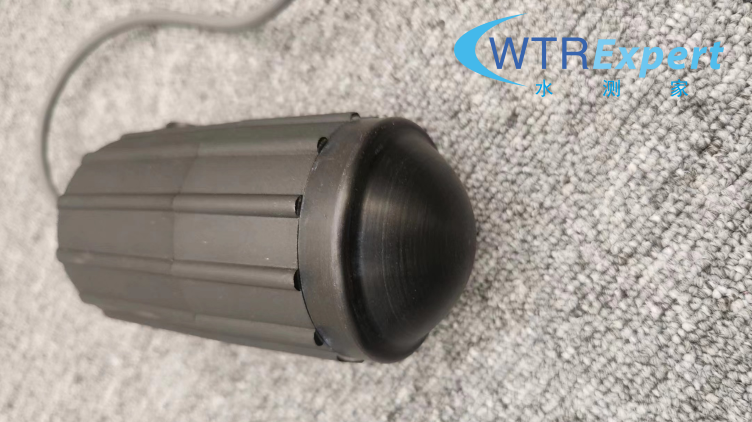

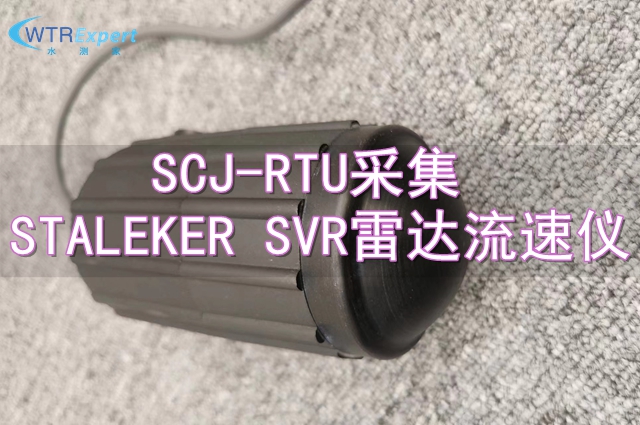

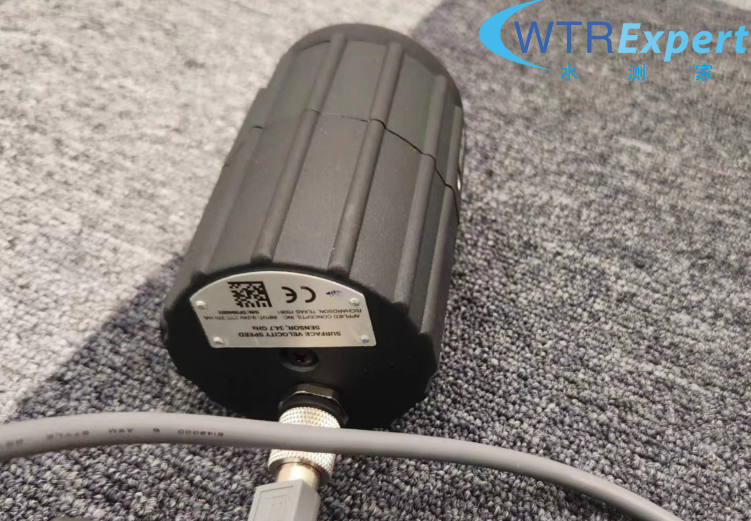

The picture of the SVR-3 radar velocity meter is below

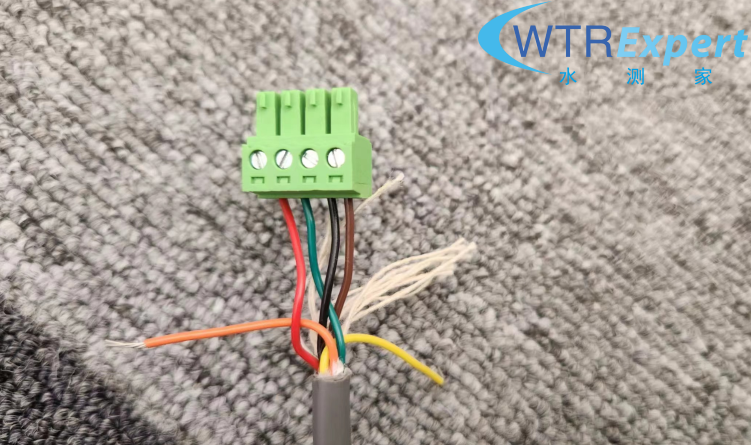

Terminals: From left to right: red, VCC, green, GND, black, A+ brown, B-

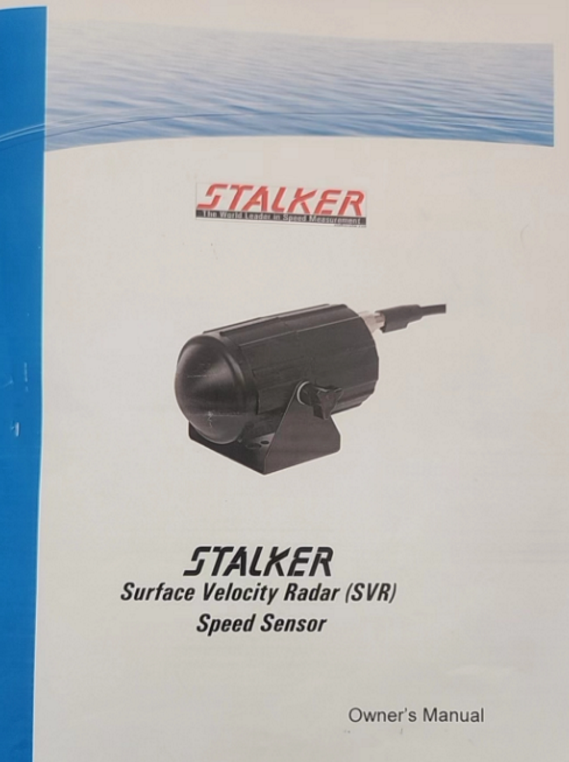

The picture of the product manual is as follows:

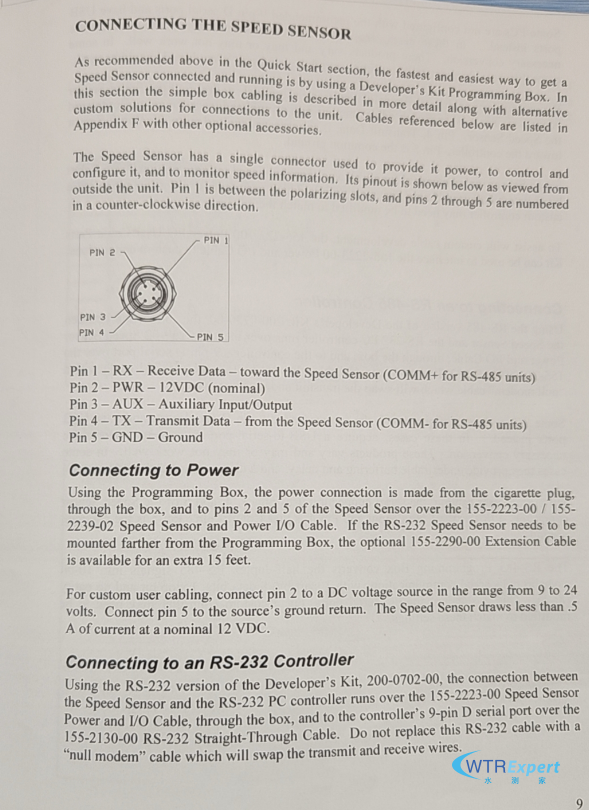

Terminal block plug-in instructions

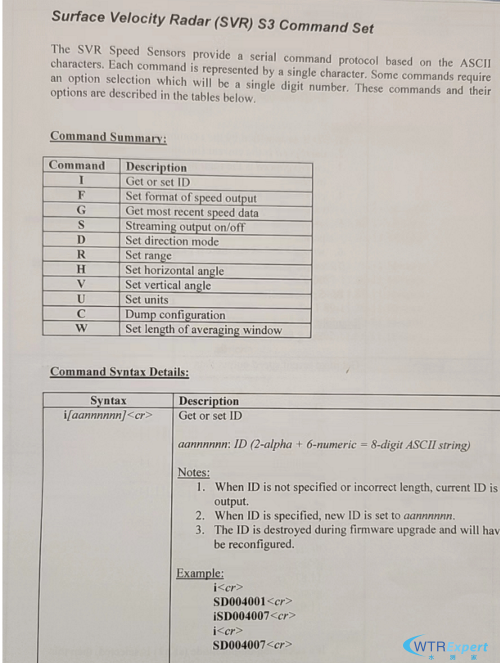

The communication protocol command is as follows:

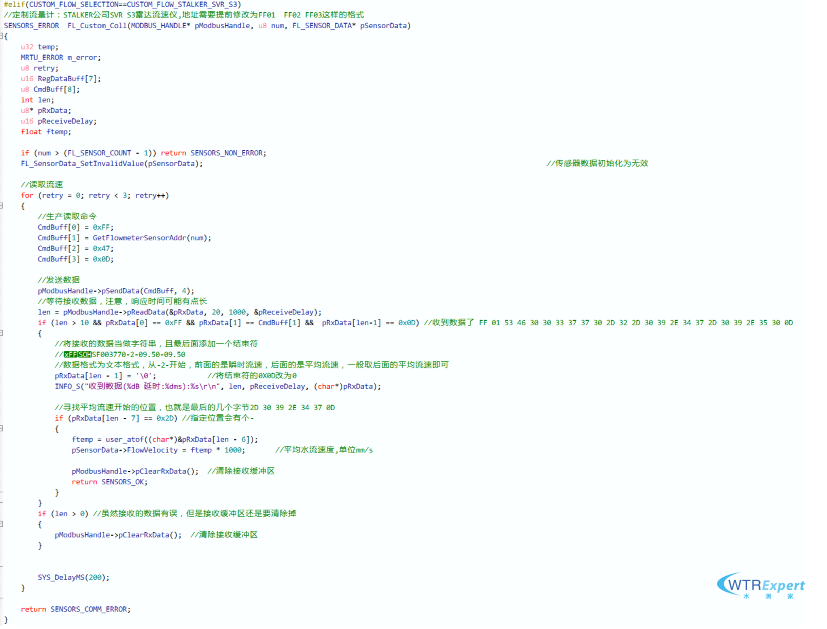

Began to modify the RTU program to realize the acquisition of SVR radar velocity meter data

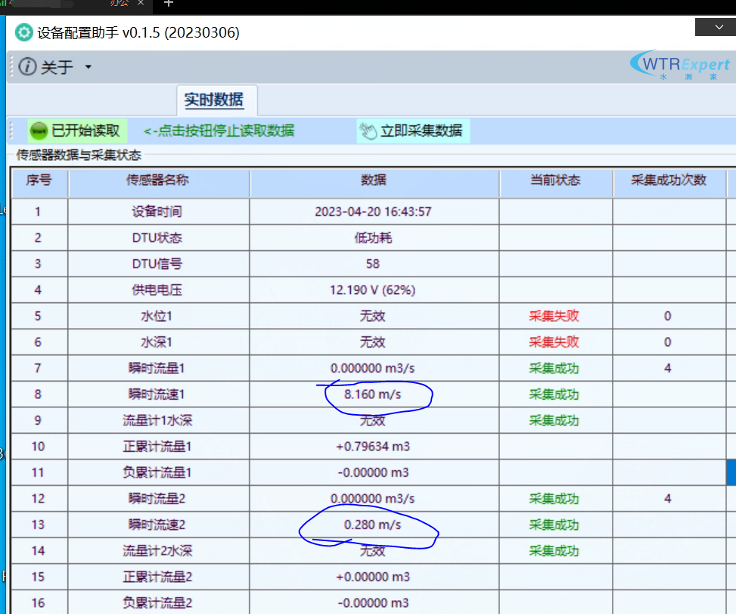

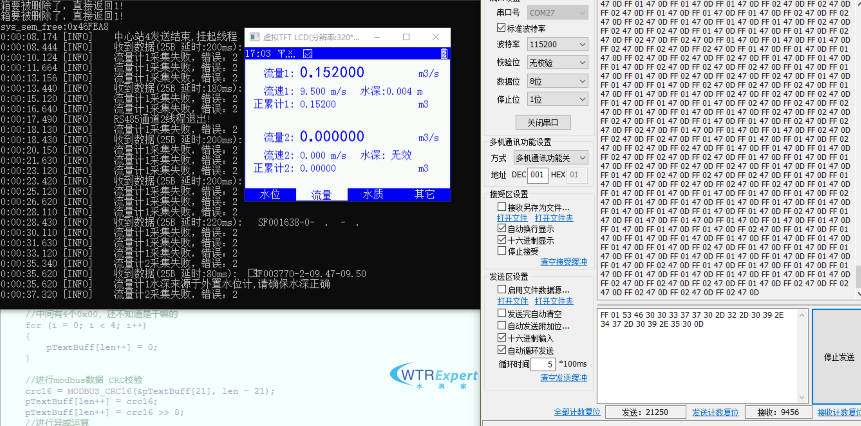

Use RTU virtual machines for testing to speed up debugging, and directly use the serial debugging assistant to simulate SVR data

Remotely upgrade and debug physical objects for customers
