The project is located in Huanggang, Hubei. The irrigation channel flow monitoring system has achieved functions such as automatic collection of water level and flow, water price measurement, and real-time image monitoring, providing basic data for regulatory departments; Thus achieving the goal of saving irrigation water and scientifically and efficiently managing irrigation areas. The functions implemented in this project are:
① Real time monitoring of water consumption in irrigation areas, rational scheduling and optimized allocation of water resources in irrigation areas. Ensure sustainable development of water management.
② Nowadays, water resources are becoming increasingly scarce, and real-time online monitoring of the entire lifecycle of water intake, supply, use, and discharge is being achieved.
③ Realize abnormal warning, real-time alarm, and timely reminder of water level and water volume to users.
④ Realize unmanned operation of facilities and equipment, saving personnel costs.
⑤ Real time alarm for abnormal values, improving emergency response capabilities and avoiding significant losses.
⑥ Implement 24-hour monitoring of WeChat bots for disconnections, and immediately send message notifications upon disconnection

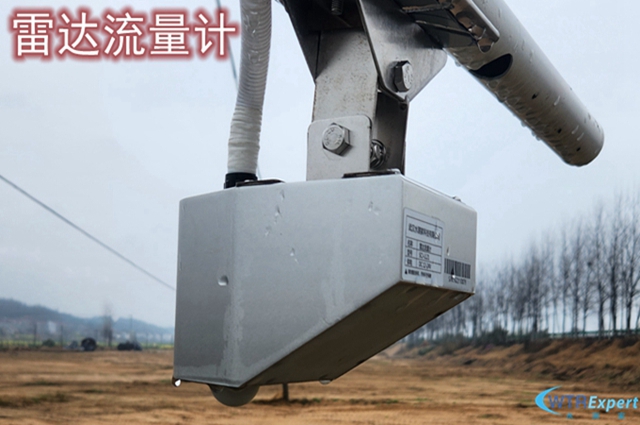

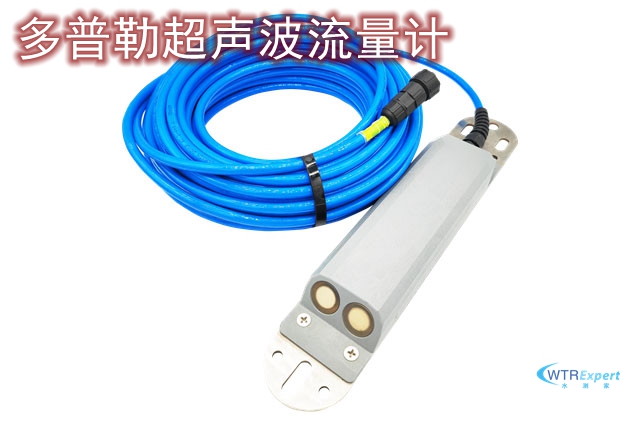

多普勒超声波流量计 雷达流量计 遥测终端机

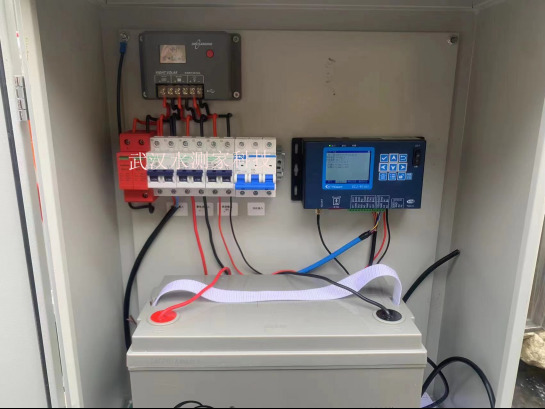

On site situation: Doppler ultrasonic flowmeter, telemetry terminal, industrial capture camera, powered by solar energy, displaying water level, flow velocity, instantaneous, and cumulative flow data. Our product implements timed collection, reporting of water level and instantaneous/cumulative flow data, as well as on-site captured images.

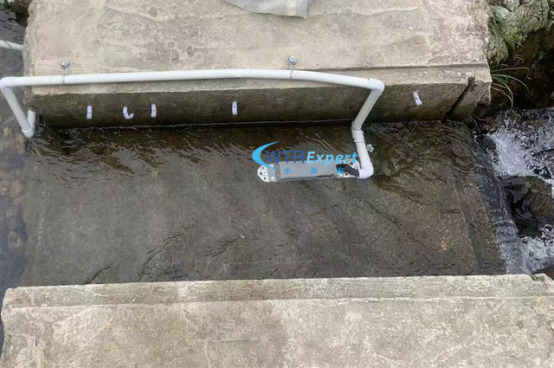

On site filming
Advantages:
1. No head loss, no need to build weirs, and no need to calibrate water level flow relationships, suitable for any cross-section non cross-section measurement;
2. No need for engineering construction, no engineering costs, and no need for deliberate interruption installation;
3. It has extremely low power consumption and can work continuously in outdoor environments
4. Internally integrated pressure water level gauge, no need for external water level gauge, achieving integrated monitoring of water level, flow rate, and water temperature;
5. Standard RS485 interface, long communication distance;
6. The flow rate range can be configured to achieve the best match between sampling accuracy and speed;
7. The accompanying configuration program makes debugging and configuration easier;
8. The measurement accuracy of flow velocity is high, and there is no drift, no need for calibration;
9. IP68 waterproof rating ensures the reliability of underwater operation;
10. Compact size, easy installation, and less obstruction to water bodies;
11. Can be paired with our company's telemetry terminal to achieve remote data transmission, while providing a free platform to view data;

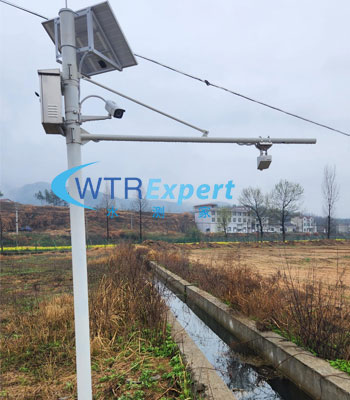

2、 On site situation: radar flowmeter, telemetry terminal, industrial capture camera, powered by solar energy, displaying water level, flow rate, instantaneous, and cumulative flow data. Our product implements timed collection, reporting of water level and instantaneous/cumulative flow data, as well as on-site captured images.

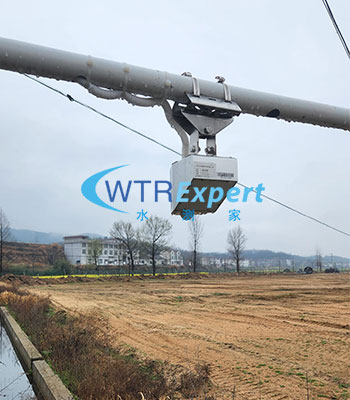

On site filming
Advantages:
1. Non contact measurement, unaffected by external environment; Easy installation, no maintenance required in the later stage, and low operation and maintenance costs;
2. Small beam angle, concentrated energy, and strong anti-interference ability greatly improve the stability, high precision, and high resolution of the product;
3. Ultra low power consumption, IP68 waterproof material, suitable for various outdoor environments;
4. Ultra low working current and duty current, more suitable for unmanned stations powered by solar energy.

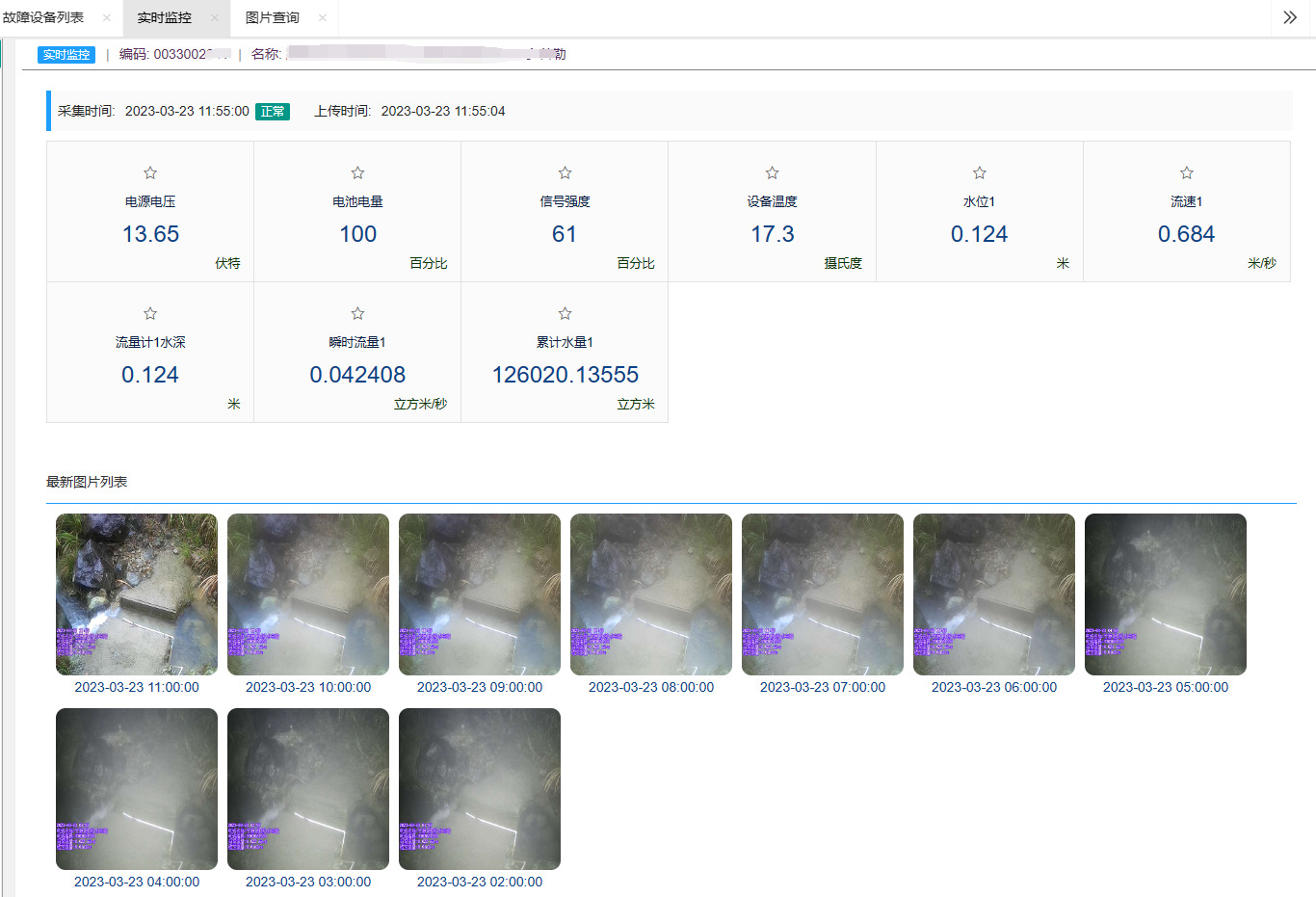

Data platform (PC end)

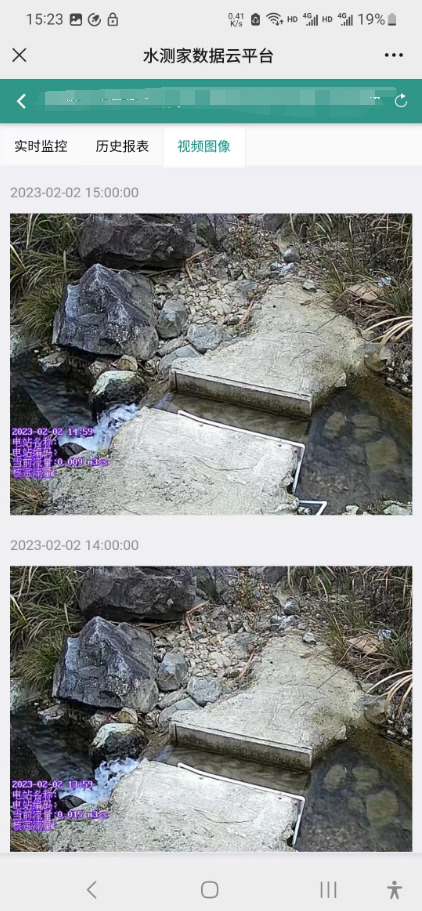

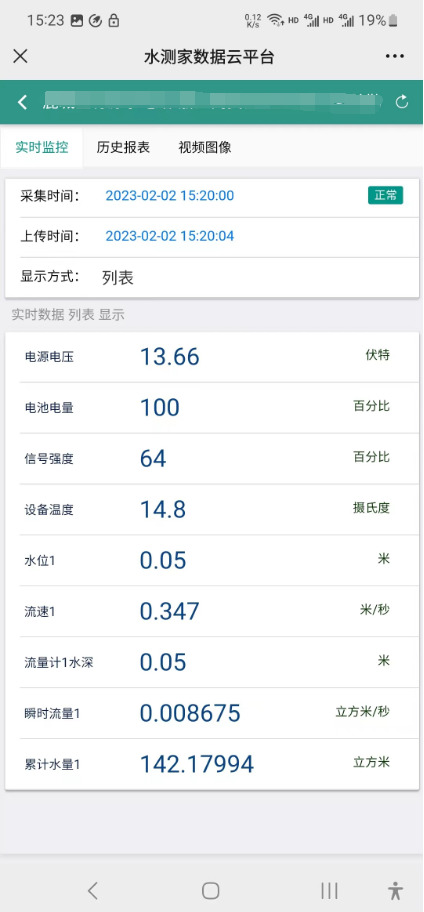

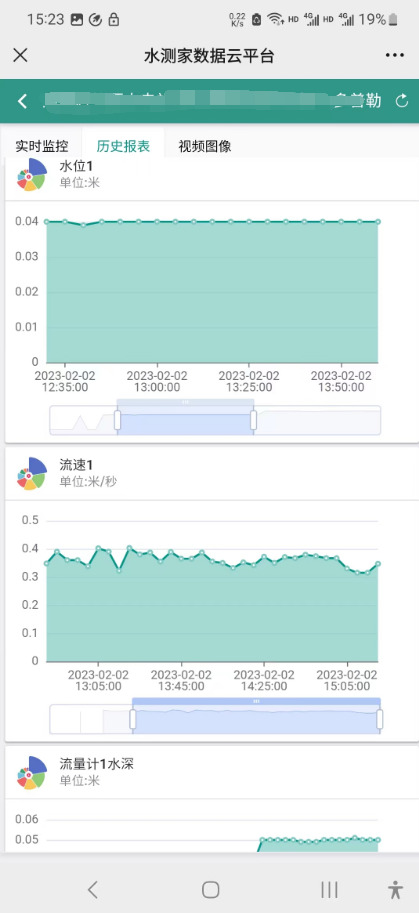

Data platform (mobile phone)
