Working principle:

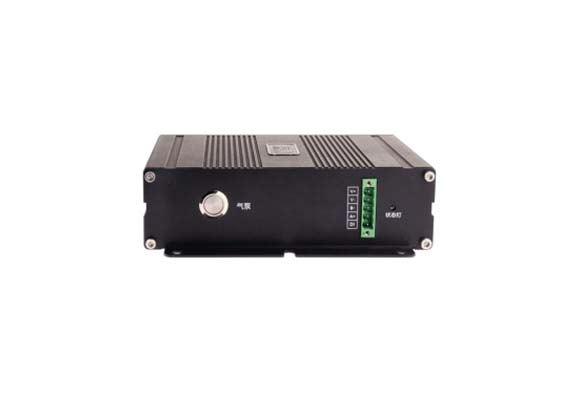

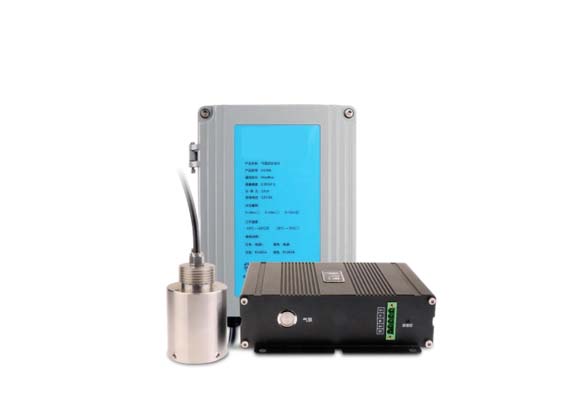

SCJ-H1506 bubble type water level gauge is a water level measurement device, which is an indirect measurement device based on pressure sensor and air tube.
Key Features:
Low power consumption design: overall low power consumption design;
Anti-clogging: Reduce the maintenance of bubble water level gauge;
High measurement accuracy: millimeter-level water level resolution;
Wide application scenarios: water level measurement scenarios for all non-corrosive liquids;
Protection level: The underwater part is IP68, which can meet various application occasions;
Product parameters:
Water level range: 0～20m/0～50m/0～70m
Pressure range: 0～200 KPa/0～500 KPa/0～700 KPa
Measuring accuracy: First-class accuracy
Resolution: 1mm
Water level change rate: ＜60cm/min
IP rating: underwater part: IP68 above water part: IP54
Air pipe size: outer diameter 6mm inner diameter 4mm
Air pipe length: 30m/50m/100m/200m
Supply voltage: 12VDC (voltage fluctuation range ±15%)
Working current: Acquisition state <10mA (excluding air pump) Standby state <500uA
Local storage: This machine can store no less than 100,000 sets of measurement data
Power protection: anti-reverse connection, overvoltage and overcurrent protection
