Working principle :

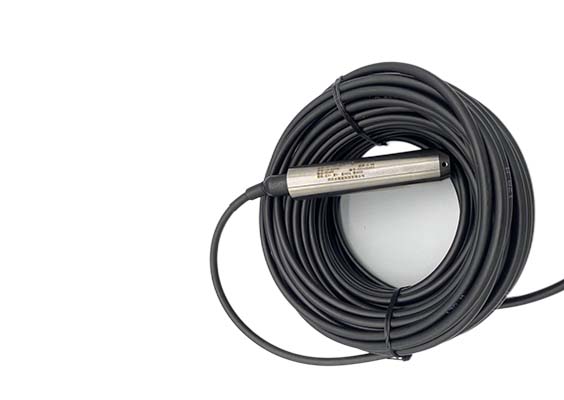

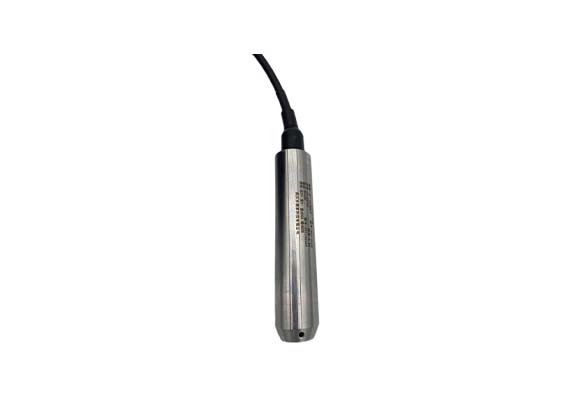

The immersion level meter is based on the principle that the static pressure of the measured liquid is proportional to the height of the liquid. It is made of advanced isolated diffused silicon sensitive elements or ceramic capacitor pressure sensitive sensors. It converts static pressure into electrical signals, and then converts them into standard electrical signals (usually 4~20mA/1~5VDC) after temperature compensation and linear correction. It is a pressure sensor for measuring liquid level. It is suitable for: groundwater monitoring, reservoir monitoring, river monitoring, channel monitoring, pipe network monitoring,
Product parameters:
1. Water level range: 0-10m...0-200m
2. Measurement accuracy: ±0.1%FS
3. Resolution: 1mm
4. Temperature measurement accuracy: ±0.2℃ (0-70℃
5. Temperature resolution: 0.01℃
6. Compensation temperature: 0-50℃
7. Supply voltage: 12V DC
8. Output interface: RS485Modbus
9. Overload capacity: 2*FS
10. Long-term stability: <0.1%FS/year Shell material: stainless steel 316L
11. Cable material: polyurethane
12. Cable specification: 7.6mm
13. Protection grade: IP68
14. Working temperature: -10-80℃
Installation method:
