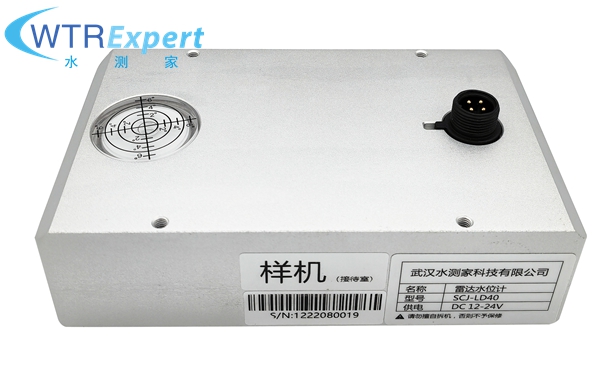

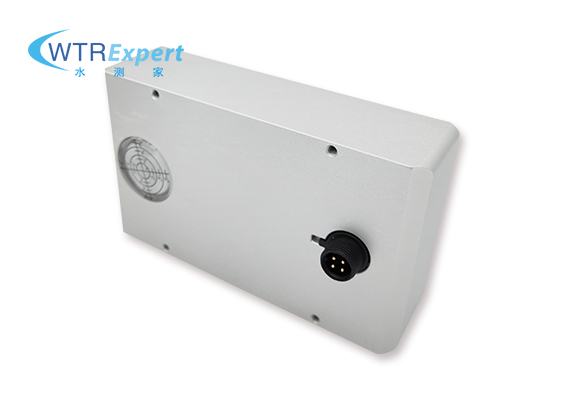

Product images:
Working principle:
SCJ-LD40 radar water level meter adopts 24G microstrip planar array antenna and frequency modulated continuous wave (FMCW) technology. The product has high measurement accuracy, low power consumption, small size, light weight, strong anti-environmental interference ability, and good reliability and maintainability. It works all-weather and is suitable for unmanned monitoring in the wild or mountainous areas. It can automatically measure and calculate data, has high stability, long service life, and is maintenance-free. It adopts the principle of microwave reflection and has strong anti-interference ability. The measurement data can reach the millimeter level and is not affected by weather, air pressure, region, and other factors. It can operate in various complex sites and can adapt to different environments at any time after changing the scene.
Key Features:
size, light weight, easy to install;
RS485 interface, long communication distance;
IP68 waterproof rating, the device will not be damaged even if submerged in water;
matching configuration program makes debugging and configuration easier;
water level measurement accuracy, no drift, no calibration required;
can be equipped with our company's telemetry terminal to realize remote data transmission and provide a free platform to view data;
radar has a small beam angle, which makes it easy to install and use in Parshall troughs or underground;
Main technical parameters:
Power supply range | DC 12V/24V (limit DC 6-28V) DC12V is recommended |
Operating temperature | -25 ℃ ~ 70 ℃ |
Storage temperature | -35 ℃ ~75 ℃ |
Measuring range | 0-40m ① |
Measurement accuracy | ±3mm |
Radar wave frequency | 24-24.25GHz |
Antenna Angle | ( Horizontal and vertical, 3dB) ±6° |
Distance measurement principle | Frequency Modulated Continuous Wave (FMCW) Technology |
Shell material | Aluminum Alloy |
Waterproof grade | IP68 |
Working power consumption | <0.5W @DC12V |
Power protection | Anti-reverse connection protection, electrostatic discharge protection |
Extreme operating temperature | -30 ℃ ~70 ℃ |
Communication interface | RS485 interface (baud rate 9600,8,N,1), effective transmission distance 1000m (>300m requires external 150Ω matching resistor) ③ |
Communication Protocol | Standard Modbus-RTU protocol, function code |
Interface and Cable | Waterproof aviation plug, comes with 5m cable |

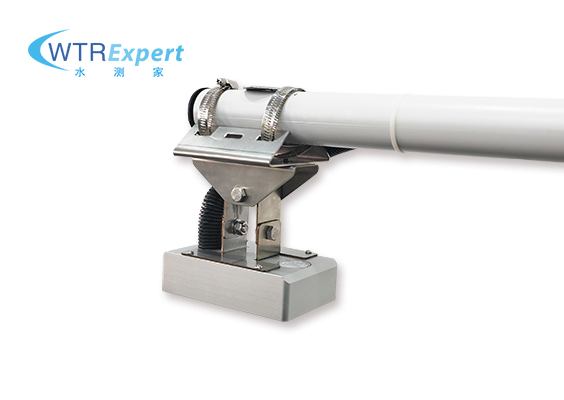

Installation method:

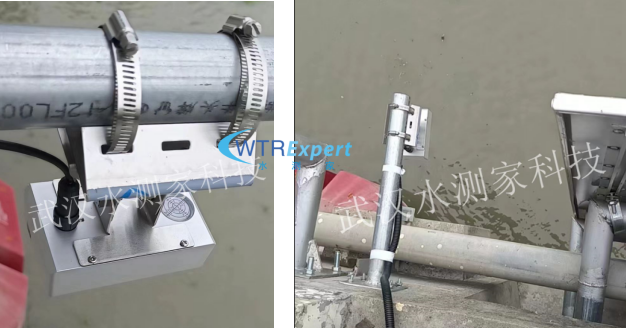

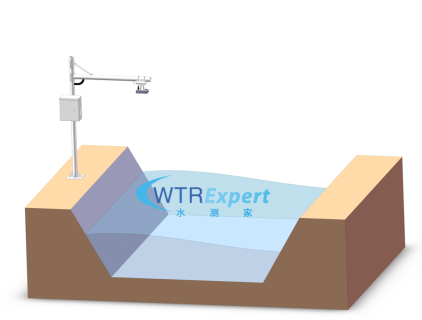

Installation example:
Detailed solution: Please click on SCJ-LD40 Radar Water Level Meter Application in Hydrology_Wuhan Water Measurement_Doppler Ultrasonic Flow Meter_Radar Flow_WTRExpert (scj-water.com)
