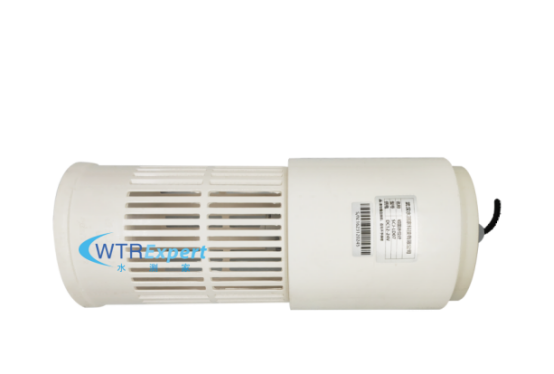

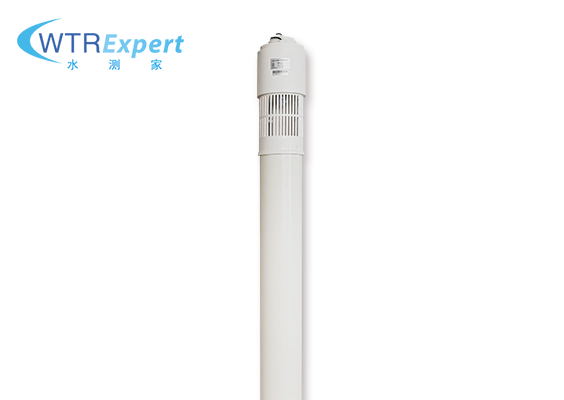

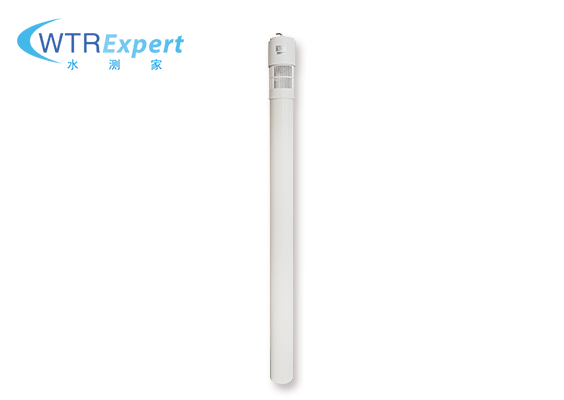

SCJ-LD07 Wireless Remote Sensing Rice Field Water Level Meter

Product Introduction:

SCJ-LD07 paddy field water level meter is a device that uses microwave technology to achieve accurate non-contact measurement of water level. The device is small and light, easy to install, and can be used for non-contact measurement of liquid levels in farmland, ditches, sewage pipe networks, culverts, water tanks, etc. The paddy field water level meter has high measurement accuracy, low power consumption, small size, light weight, strong resistance to environmental interference, and good reliability and maintainability. It works all-weather and is suitable for outdoor or unmanned monitoring. It can automatically measure and calculate data, has high stability, long service life, and is maintenance-free.

Working principle:

It adopts the principle of microwave reflection, has strong anti-interference ability, can measure data up to millimeter level, and has a built-in integrated acquisition, transmission and power supply system. It is not affected by weather, air pressure, region and other factors, can operate in various complex sites, and can adapt to different environments at any time after changing scenes. It is mainly used for variable floating measurement of water level in rice field irrigation.

Key Features:

n size, light weight, easy to install and disassemble

nRS485 interface, long communication distance; (split type)

n low power consumption design, longer battery life;

n high-end version has an integrated lithium battery, no need to purchase power from outside, no need to erect poles in the field, and is more convenient to use; (integrated)

nIP68 waterproof rating, the device can still work normally after being submerged in water;

nmatching host computer configuration program makes debugging and configuration easier ;

nlevel measurement has high accuracy and can monitor water level fluctuations between 0.2-1cm;

n probe has no drift and no calibration is required;

nWith built-in water level warning, timely reminder, precise irrigation for colleges and universities;

nself-control function, it can save water in irrigation without wasting;

n Intelligent monitoring, everything is under your control. One-click viewing of water level data makes planting easier

nacquisition, transmission, storage, calculation, and control modules to achieve remote data transmission;

n provide a free platform to view data;

n radar beam angle is small, which is convenient for installation and use in waveguides, Parshall troughs or underground;

ndefault installation pipe is 110mm PVC drainage pipe;

Main technical parameters:

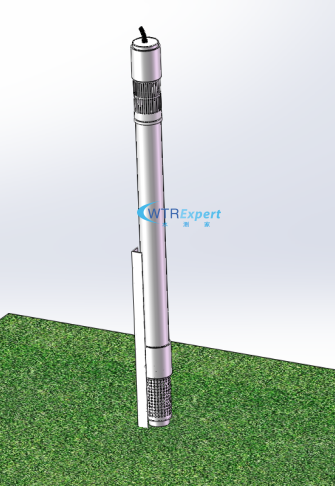

Installation method:
