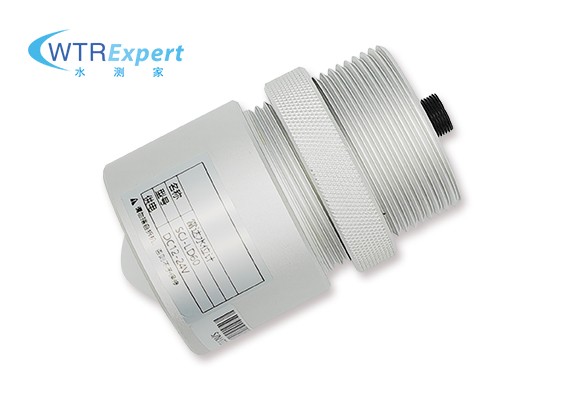

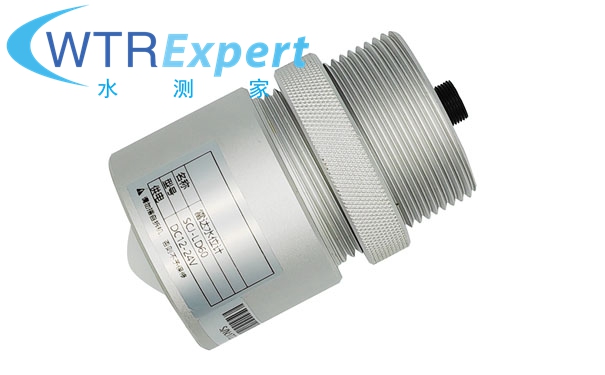

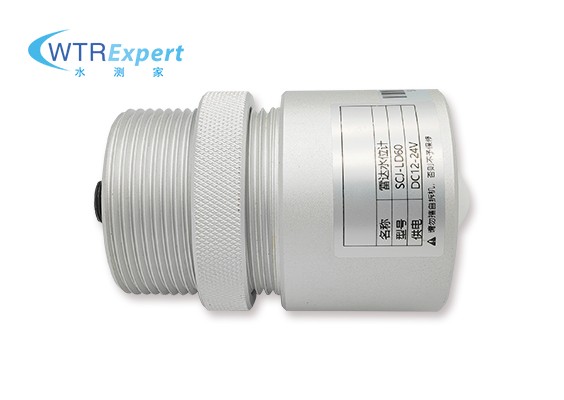

Product images:
Working principle:
SCJ-LD60 radar water level meter adopts PCR planar microstrip pulse coherence technology to achieve fast and high-precision water level measurement; the product has high measurement accuracy, low power consumption, small size, light weight, strong anti-environmental interference ability, and good reliability and maintainability. It works all-weather and is suitable for unmanned monitoring in the wild or mountainous areas. It can automatically measure and calculate data, has high stability, long service life, and is maintenance-free; it adopts the principle of microwave reflection, has strong anti-interference ability, and the measurement data can reach the millimeter level. It is not affected by weather, air pressure, region, and other factors. It can operate in various complex sites and can adapt to different environments at any time after changing the scene.
Product parameters:
Transmitting frequency: 76GHz~81GHz
Measuring range: 0.1m~65m
Measuring accuracy: ±1mm
Beam Angle: 6°
Power supply range: 9~36VDC
Communication method: RS485 (Modbus)
Working temperature: -40~85℃
Shell material: PP
Antenna type: Lens antenna
Recommended cable: 7*0.3m㎡
Protection level: IP68
Installation method: bracket

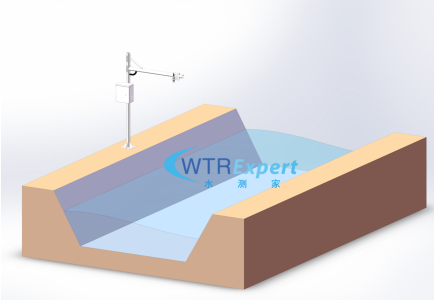

Installation method:
