The SCJ-BX01 portable Doppler ultrasonic flowmeter is a device that uses the Doppler effect of ultrasound to measure water flow velocity and flow rate. It integrates a signal processor and a proprietary flow rate calculation algorithm, which can quickly and accurately calculate water flow velocity without calibration or drift. The device is equipped with a TFT LCD screen and a lithium battery, allowing for quick measurement of water depth, flow velocity, flow rate, and other data on site without manual calculation. The device has data storage and export functions designed for fast and portable measurement of water flow velocity and flow rate;
Main features:
The sensor integrates a pressure water level gauge internally, eliminating the need for an external water level gauge to achieve integrated monitoring of water level, flow rate, flow rate, and water temperature;
Wireless connection is used between the handheld device and the sensor, without cable constraints, making it more convenient for multiple people to operate;
Equipped with a built-in lithium battery and a standard Type-C USB interface, it can be connected to a computer or charged;
Comes with a built-in keyboard and LCD, easy to operate, intuitive reading, direct output of results, no need for secondary calculations;
The measurement accuracy of flow velocity is high, and there is no drift, no need for calibration;
The Doppler ultrasonic flowmeter probe has an IP68 waterproof rating, ensuring the reliability of underwater operation;
Compact size, easy installation, and less obstruction to water bodies;

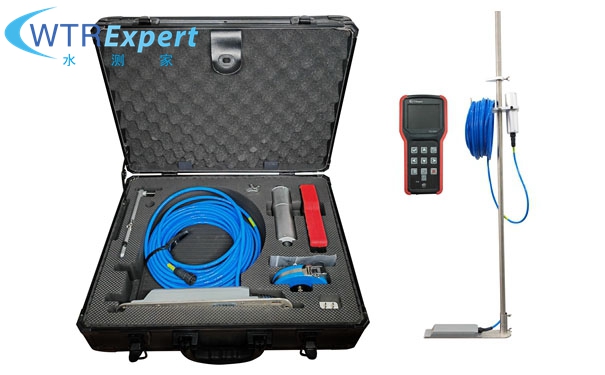

Comes with a matching suitcase and measuring rod, easy to use;

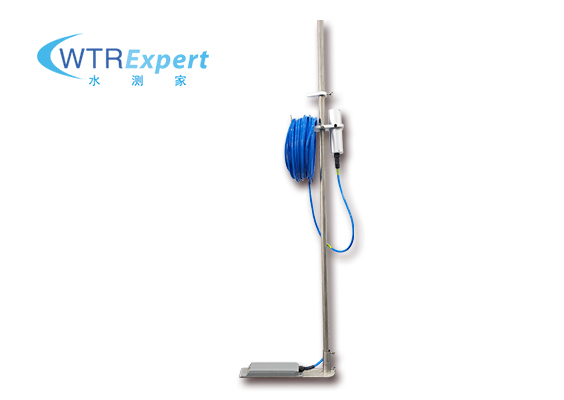

The wireless acquisition module and cable can be directly fixed to the measuring rod, avoiding cable clutter and facilitating operation;
The handheld device is connected to the sensor probe through wireless communication and can be hung on the body, freeing both hands and avoiding damage caused by the handheld device falling into the water;
Main technical parameters:
Flow meter probe
4-core aviation waterproof connector for cable interface
Cable length 20m (default), other lengths can be customized
Working temperature: 0 ℃~60 ℃ (non freezing)
Storage temperature -40 ℃~85 ℃
Flow velocity range 0-12m/s (adjustable range 0-4m/s; 0-6m/s; 0-8m/s; 0-12m/s) ②
Flow velocity accuracy 1% (accuracy within 1m is 1cm/s)
Flow velocity resolution 1mm/s
Water depth range 0-10m (other ranges can be customized)
Water depth accuracy ± 0.5%
Depth resolution 1mm
Water temperature range: 0 ℃~60 ℃
Water temperature accuracy ± 0.5 ℃
Waterproof rating IP68
Working power consumption<0.5W @ DC12V
Power protection, anti reverse protection, electrostatic discharge protection
Extreme working temperature -30 ℃~70 ℃
Compensation methods include sound speed compensation and user parameter compensation
Equipment material shell: PC engineering plastic; Bottom plate: 304 stainless steel; Cable: Polyurethane airway cable
Ultrasonic frequency 1MHz ± 30Hz
Attention: The cable cannot be folded in half, there is an air duct inside;
Wireless Collector
Charging interface USB Type-C interface (DC5V)
Flow meter interface 4-core aviation waterproof socket
Shell material: aviation aluminum (surface anodized)
Working temperature -30 ℃~70 ℃
Storage temperature -40 ℃~85 ℃
Battery capacity 3000mAH 3.7V
Charging current ≤ 1.2A
Communication method: Wireless Lora
Communication distance>100m
Other functions can be powered by an external power bank to increase battery life
Handheld device
Charging interface USB Type-C interface (DC5V)
Shell material: PC engineering plastic
Working temperature -30 ℃~70 ℃
Storage temperature -40 ℃~85 ℃
Battery capacity 3500mAh 3.7V
Charging current ≤ 1.2A
Communication method: Wireless Lora
Communication distance>100m
Screen size 3.5-inch TFT LCD (resolution: 320 * 240)
Storage capacity 16MB (expandable)
Manual collection and storage mode, timed automatic collection and storage mode
Basic functions include flow rate, water depth, water temperature, instantaneous flow rate, cumulative flow rate collection and display, storage, historical data query, and export
Instantaneous flow unit m3/s or L/s or m3/h
Flow velocity range 0-12m/s
Flow velocity resolution 0.001m/s
Water depth range 0-10m/s (expandable)
Depth resolution 0.001m
Instantaneous flow range 0-99999999.999m3/s (1 billion cubic meters per second)
Instantaneous flow resolution 0.000001m3/s (1mL/s)
Accumulated flow range 0-18446744073095 m3 (184 trillion cubic meters)
Accumulated flow resolution 0.00001m3/s (10mL/s)
Water temperature range -30 ℃~70 ℃
Water temperature resolution 0.1 ℃
Storage mode: manual storage, timed storage (5 seconds/10 seconds/30 seconds/1 minute/2 minutes/5 minutes)
By default, historical data storage can store the last 64 flow measurement data, with a capacity of 2046 records per storage
The length of time for single data collection and storage is as follows:
1. 5-second storage interval: Store 2.84-hour flow measurement data
2. 10 second storage interval: stores 5.68 hours of flow measurement data
3. 30 second storage interval: stores 17.05 hours of flow measurement data
4. 1-minute storage interval: Store 34.1 hours (1.4 days) of flow measurement data
5. 2-minute storage interval: Store 68.2 hours (2.8 days) of flow measurement data
6. 5-minute storage interval: Store 170.5 hours (7.1 days) of flow measurement data
Other functions can be powered by an external power bank to increase battery life
