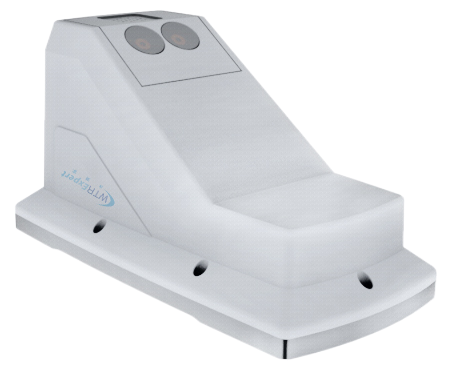

Product images:

Product Introduction:

SCJ-LL02 radar ultrasonic multifunctional flowmeter adopts a flow measurement device that combines contact and non-contact methods. The product mainly consists of four parts: radar flow meter, ultrasonic flow meter, radar water level meter and pressure water level meter. SCJ-LL02 highly integrates the advantages of radar flow measurement and ultrasonic flow measurement, realizing full-pipe and non-full-pipe full-scene flow measurement, while also having the characteristics of extremely low top installation and maintenance of radar products. It is an online flow monitoring product developed for scenes such as urban rainwater and sewage pipe networks and river outlets. This product can effectively help customers grasp the basic laws and basic information of the on-site status of drainage pipe networks, outlets, etc. in real time, and improve customers' management and operation capabilities.

Features :

1) Measurement environment: Both full and partially full underground pipes can be measured;

2) Intelligent flow algorithm, supporting multiple channels and pipe network configurations;

3) Installation on the top of the pipeline: can effectively reduce the impact of siltation, garbage, etc. on the equipment;

3) Easy installation: no need to go down the well for installation, ensuring personnel safety and convenient operation and maintenance in the later stage;

4) Protection level: waterproof IP68;

5) Power failure protection: in case of sudden power failure, data will be automatically saved and not lost;

6) Configuration: Supports Bluetooth configuration and remote configuration, realizes remote monitoring and management, and is extremely convenient to operate;

7) Calculation model: embedded pipe network flow calculation model, which can output water level, flow velocity and flow;

Product parameters:
