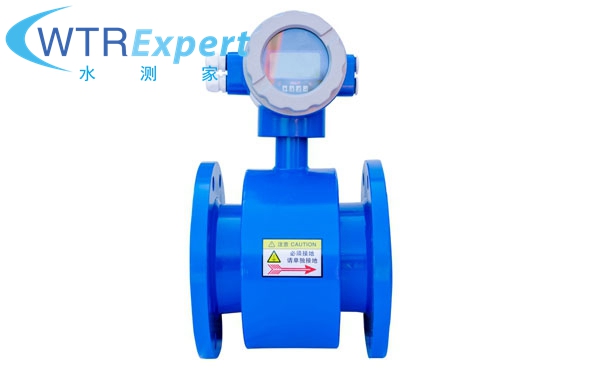

Product images:
Product parameters:
Speed measurement range: (0-15) m/s
Measuring pipe diameter: DN100 --DN3000
Measuring degree: 1.0, 2.0, 2.5
Measuring medium (conductivity): >50us/cm;
Working pressure: ≤1.6MPa
Medium temperature: 0℃-80℃
Power consumption: <20W
Protection level: IP65, IP68 (integrated and split type optional)
Connection method: flange connection, threaded connection (optional)
Power supply mode: 220VAC, 24VDC/12VDC, and supports 3.6V/12VDC and 220VAC multi-channel power supply automatic
Switching function
Main technical parameters:
Nominal diameter: DN15～DN2000
Nominal pressure: 0.6MPa, 1.0MPa, 4.0MPa
Electrode materials: 316L, Hastelloy B, Hastelloy C, titanium Ti, tantalum Ta, stainless steel coated with tungsten carbide, platinum-iridium alloy, special materials.
Lining materials: Neoprene, polyurethane rubber, natural rubber, nitrile rubber, Teflon (PFA), polytetrafluoroethylene (PTFE), fluorinated ethylene propylene (FEP or F46)
Connection method: flange [implement GB/T9119-2010 standard]
Accuracy level: ±0.2%, ±0.3%, ±0.5% (indication error)
Measuring range (flow velocity): 0.01m/s～15m/s
Measuring medium conductivity: greater than 5μS/cm
Housing protection grade: IP65, IP67, IP68
Ambient temperature: -10℃～50℃
Power supply: AC220V/DC24V/DC3.6V
Flow meter output signal: 4mA~20mA, 0Hz~5kHz, upper and lower limit alarm, etc.
Communication mode: RS485 (RS232, MODBUS, HART, PROFIBUS-DP, etc. are optional)

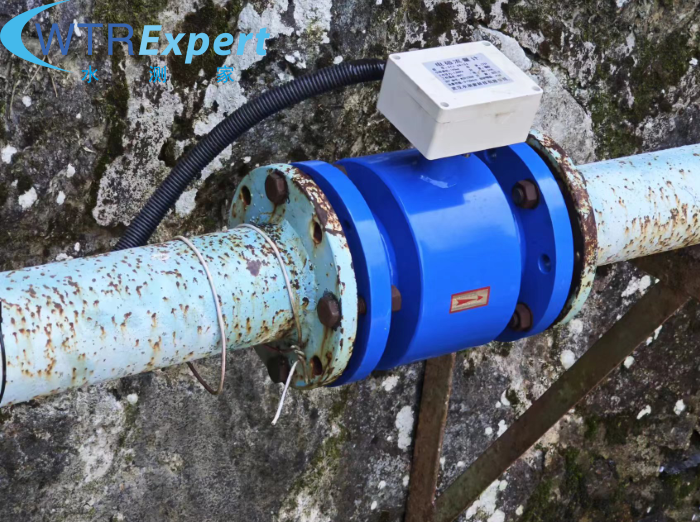

Application examples:
