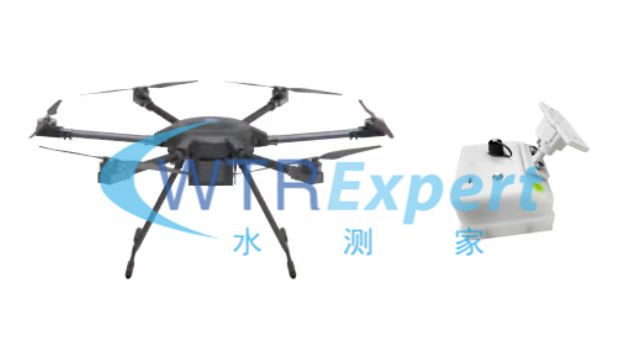

Product Introduction:
The SCJ-LL21 drone-mounted radar velocity meter is a device that uses the Doppler effect of electromagnetic waves to measure water flow velocity. It emits 24GHz electromagnetic waves and irradiates the surface of the water body. The water body backscatters the electromagnetic waves to obtain echoes, and measures the Doppler frequency shift of the echoes to obtain the surface velocity of the water body. The internal integrated signal processor, acquisition transmission power supply port system, and proprietary velocity calculation algorithm can quickly and accurately calculate the water flow velocity, and no calibration is required, and there is no drift. The water flow velocity and flow monitoring system relies on advanced flight platforms, flow velocity, and water level radars, and can intelligently monitor the water flow velocity. It has the characteristics of flexibility, low cost, rich functions, simple operation, and low risk, and can provide strong support for water flow velocity and flow monitoring.
Features:
nimported Doppler radar antenna, high-precision flow velocity measurement;
nintegrated controller, 4G wireless transmission, complete flow rate collection, flow calculation, storage and transmission;
nbuilt-in mounting points to match the drone type;
nprivate customization;
npower supply port inside;
nhistorical flow rate and flow data;
naffected by the monitoring environment, can be used anywhere for daily or emergency situations;
nDrones can be operated for remote monitoring, avoiding risk areas and ensuring the safety of operators;
ntime transmission of flow rate data to the drone management platform
nsize, light weight, equipped with special bracket, easy to install;
nRS485 interface, long communication distance;
nflow rate range can be configured to achieve the best match between sampling accuracy and speed;
nmatching configuration program makes debugging and configuration easier;
nrate measurement has high accuracy, no drift, and no calibration required;
n IP68 waterproof rating ensures reliability in wet environments and will not be damaged even if submerged in water;
nsize, easy installation, non-contact flow measurement, no obstruction to water body;
ncan be equipped with our company's telemetry terminal to realize remote data transmission, and provide a free platform to view data;
Product parameters:
Power supply range | DC 12V/24V (limit DC 9-28V) DC12V is recommended |
Working current | Average current <18mA @ DC12V 25℃ ① |
Operating temperature | -30℃~70℃ |
Storage temperature | -40℃ ~85℃ |
Flow rate range | 0-65m/s (configurable range 0-18m/s; 0-36m/s; 0-65m/s), default 0-18m/s ② |
Flow rate accuracy | 1% (accuracy within 1m ±1cm/s) |
Flow rate resolution | 1mm/s |
Waterproof grade | IP68 |
Power protection | Anti-reverse connection protection, electrostatic discharge protection |
Extreme operating temperature | -35℃~80℃ |
Communication interface | RS485 interface (baud rate 9600,8,N,1), effective transmission distance 1000m (>300m requires external 150Ω matching resistor) ③ |
Power supply | Device with power supply port |
Platform Features | Data logging, historical data, |
Communication Protocol | Standard Modbus-RTU protocol, function code 03H |
Current radar frequency | 24GHz |
Current measuring antenna beam angle | Horizontal 12°, vertical 25° |
size | 100x100x38mm |
weight | 0.55Kg |

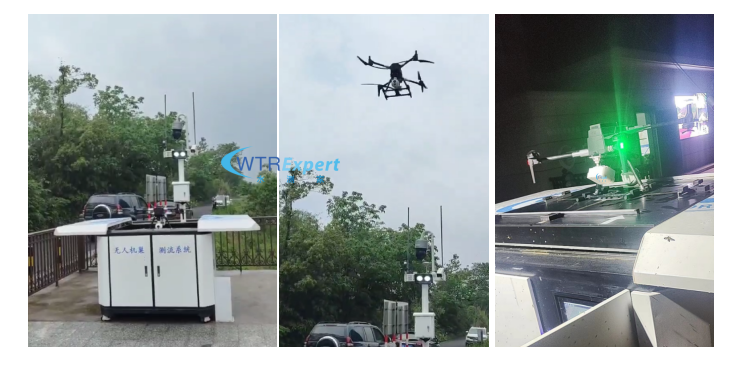

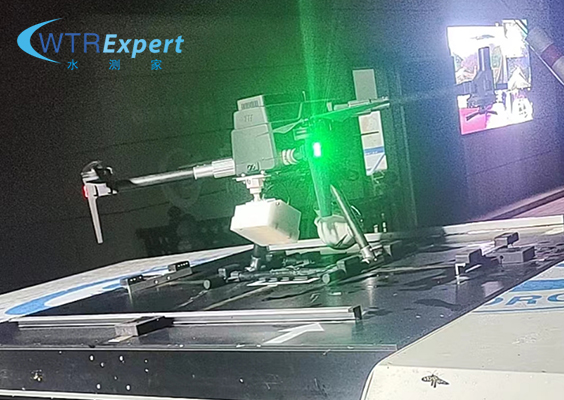

On-site case:
